What the Eastron SDM120CT is

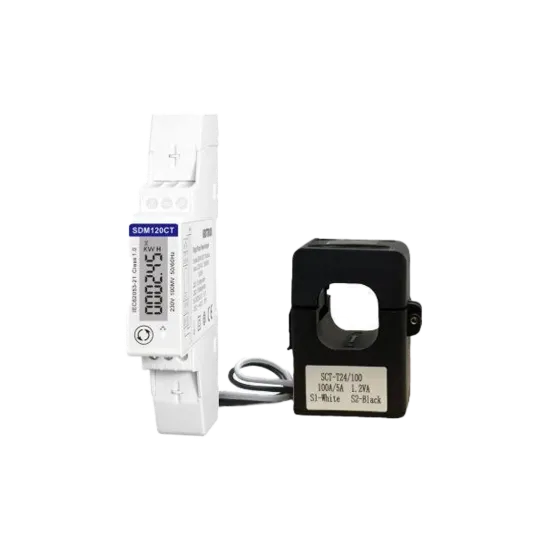

The Eastron SDM120CT Single Phase CT Operated Energy Meter is a compact DIN-rail meter for accurate single-phase energy monitoring using current transformers. It is designed for installations where direct-connected metering is not the most practical route and where the installer wants the extra flexibility that comes with CT operation. In real terms, that makes it useful for solar monitoring, sub-metering, landlord and tenant usage tracking, and a wide range of smart energy projects where reliable data matters.

Eastron describes the SDM120CT-Modbus as a single phase 2 wire, 120V or 230V AC, CT operated meter with RS485 Modbus communication, a backlighted LCD display and 2 pulse outputs. That gives it a clear role: it is not just a basic kWh register, but a multifunction single-phase meter for sites that need more detailed electrical information.

Who it suits

This meter suits installers, electricians and specifiers working on single-phase circuits where accurate monitoring is needed without using a direct-connected whole-current meter. It is particularly useful in retrofit work, small commercial sub-metering, battery and inverter monitoring, and domestic solar systems where the circuit arrangement or current level makes a CT-operated solution more appropriate.

It also suits projects where the metering data needs to be shared with another device. Because Eastron provides both Modbus RTU and pulse outputs on the SDM120CT-Modbus version, the meter is relevant well beyond stand-alone visual reading.

Verified measurement and communication features

Eastron’s published SDM120CT documentation confirms that the Modbus version measures a broad set of electrical values, including active energy (kWh), reactive energy (kVarh), active power, reactive power, apparent power, voltage, current, power factor, demand and frequency. That matters because it means the product can support fault-finding, usage analysis and system optimisation rather than only basic consumption logging.

The official Eastron brochure and manual also confirm RS485 Modbus RTU communication and 2 pulse outputs. In practical terms, that makes the meter suitable for integration with BMS platforms, inverter-side monitoring systems, logging hardware and other energy dashboards that need a dependable metering feed.

Why CT operation matters

The SDM120CT is a CT-operated meter rather than a direct-connected one. Eastron’s documentation confirms 1A/5A CT operation, which is an important buying point because it allows the installer to size the metering arrangement around the application rather than being constrained by a whole-current meter format. On retrofit sites, that can simplify the job and reduce disruption. In switchgear and distribution-board work, it can also make the meter easier to integrate cleanly.

For the end user, the practical benefit is that the meter can be installed in a wider range of monitoring situations without needing a direct in-line current path through the meter itself.

Display, DIN-rail format and everyday usability

Eastron confirms a backlighted LCD display, which is useful in plant cupboards and distribution boards where visibility is often poor. The DIN-rail format keeps the unit compact and installer-friendly, which is one of the reasons Eastron meters are widely specified for practical sub-metering tasks. The meter is designed to sit neatly in the enclosure rather than dominate it.

That matters more than it sounds. Good metering products do not only need to read accurately. They also need to fit the board, be easy to wire, and present useful information in a way that makes commissioning and later checks straightforward.

Accuracy and compliance

Eastron literature for the SDM120CT series states accuracy better than Class 1/B, while the manual series is aligned with the SDM120CT family’s intended sub-metering and monitoring role. For practical energy monitoring, that gives installers confidence that the meter is suitable for measurement tasks where stable, dependable readings are needed over time.

It is also backed by Eastron Europe’s published warranty position, which states that all Eastron products come with a 24-month warranty as standard. That gives the product a straightforward support proposition for trade supply and project use.

Why this variant may be the right choice

The SDM120CT is the right Eastron choice when the installation is single phase, CT operated and communication-ready. It combines a compact DIN-rail form, multifunction measurement, Modbus RTU, dual pulse outputs and a backlit display in one meter that is easy to place in a distribution board or control enclosure. For sites that do not need a three-phase meter, it is the more targeted and more economical fit.

It works especially well where a project needs a clear single-phase monitoring point for solar, batteries, EV-related circuits or sub-metered outgoing ways. If the job needs three-phase CT metering instead, the larger SDM630CT-M-TP is the more suitable companion product.
