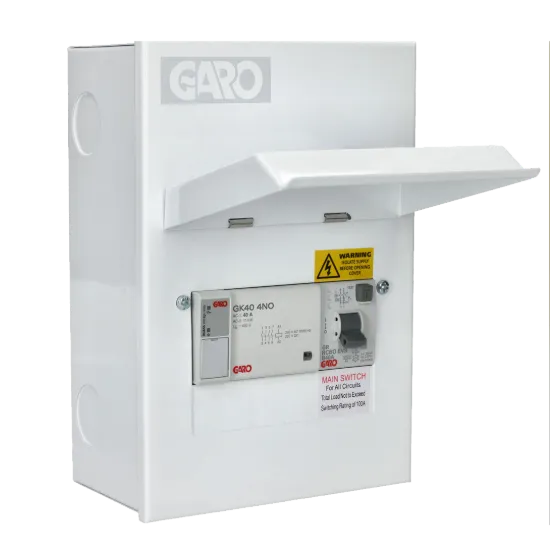

Garo G6EV40PME: Compact EV Consumer Unit with 40A Type A RCBO & PME Fault Detection

Ensure a safe and compliant installation for your indoor home EV charger with the Garo G6EV40PME consumer unit. This compact 6-way metal enclosure (IP40 rated) provides essential protection specifically designed for electric vehicle circuits. It integrates a Type A RCBO with Garo's PME fault detection technology, meeting key requirements of the 18th Edition Wiring Regulations (BS 7671) for EV charging points.

PME Fault Detection for Vital Safety

The standout feature is the built-in PME (Protective Multiple Earthing) fault detection relay. This technology constantly monitors the supply voltage and, as required by regulations, disconnects the charger (phase, neutral, and earth) within 5 seconds if the voltage moves outside the safe range of 207V to 253V detailed in the product specification. This critical safety function protects against 'lost neutral' faults on TN-C-S supplies and typically means a separate earth electrode is not required for the EV charger installation, simplifying the setup.

Reliable RCBO Protection

The unit includes a 40A Type A RCBO as the main protective device. This single unit provides both 40A overload/short-circuit protection and 30mA Type A residual current protection, which detects AC and pulsating DC leakage currents sometimes associated with EV chargers. This ensures comprehensive protection for the final circuit feeding your charger.

Compact Indoor Metal Enclosure (IP40)

Housed in Garo's 6-way metal consumer unit enclosure, the G6EV40PME is designed for indoor use (IP40 rating). Its smaller size compared to 8-way units makes it suitable for installations where space might be limited, while still providing a durable metal housing for the protective components. Note that unlike some other models in the range, surge protection (SPD) is not listed as included in this specific unit's technical data.

Why Evergy Recommend This Product

The Garo G6EV40PME offers essential EV protection features:

• Provides core safety with a 40A Type A RCBO and PME Fault Detection.
• PME detection feature enhances safety and usually avoids the need for an earth rod.
• Features a compact 6-way IP40 metal enclosure for indoor installations.
• Ensures compliance with key BS 7671 requirements for EV chargers.
• For installations requiring surge protection or an 8-way enclosure, consider the GS8EV40PME (IP40 + SPD) or GCS8EV40PME (IP65 + SPD).

Technical Specifications Overview

Based on the Garo G6EV40PME datasheet:

• Model: G6EV40PME
• Main Device: 40A Type A RCBO
• Additional Devices: PME Fault detection
• Enclosure: 6-way Metal, IP40
• Standard: EN 61439-3, Compliant with BS 7671

Comes with a 5-year warranty on mechanical parts and a 2-year warranty on electronic components, as stated in the product documentation. Consult the full datasheet for installation guidance.

Essential Protection for Indoor EV Charging

Choose the Garo G6EV40PME for a compliant and cost-effective protection solution for your indoor EV charger. Ensure installation by a qualified professional using appropriate EV cabling.
