What the product is and who it suits

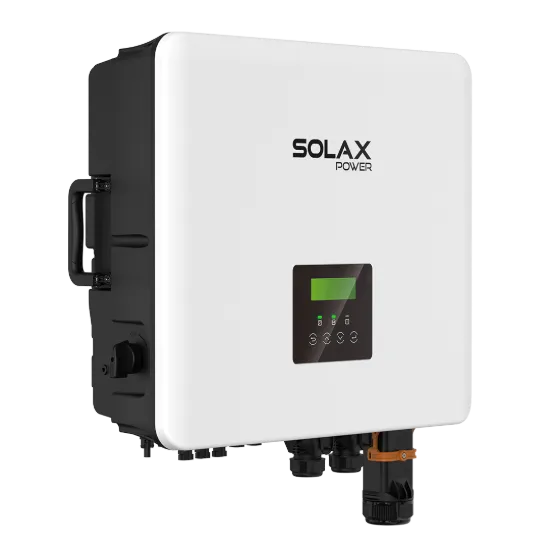

SolaX X1 Hybrid G4 7.5kW is the top single-phase output model in this part of the X1 Hybrid G4 family. It is aimed at larger homes and other single-phase properties that want a more powerful hybrid inverter while remaining within a domestic-style wall-mounted form factor. In practical terms, it suits higher-consumption homes, larger roof arrays, battery-led energy strategies and projects where the owner wants to squeeze more value from a single-phase supply before considering a three-phase redesign.

The model exists because not every property with substantial solar and storage plans has a three-phase supply. The X1-HYBRID-7.5-D gives those customers a way to stay within the single-phase hybrid class while still moving into a much stronger output and PV bracket than entry-level systems can offer.

As with the rest of the series, the product sits within a wider SolaX storage logic. The official product page states that the X1 Hybrid G4, when combined with the T30 battery and the Matebox, forms the X-ESS G4. That is commercially useful because it confirms there is a verified system pathway around the inverter rather than only a standalone box with limited ecosystem support.

Key features and practical benefits

SolaX lists the X1-HYBRID-7.5-D with 7500W rated output power, up to 15.0kWp recommended PV array power, a 70 to 550V MPPT range, 2 MPPT trackers in a 1/1 layout and 16A maximum input current per MPPT. Those are strong numbers for a single-phase hybrid inverter and they matter because they allow much larger roof arrays to be brought into a hybrid storage design without stepping to a different product family.

The wider X1 Hybrid G4 platform also supports up to 200% PV oversizing, up to 110% AC output and up to 97% efficiency in charging and discharging. For a larger domestic system, those features are not minor extras. They are part of what helps the inverter make better use of solar production, battery charging windows and stored energy across the day.

• 7500W rated output power
• Up to 15.0kWp recommended PV array power
• 2 MPPTs with 1/1 string layout
• 70 to 550V MPPT voltage range
• 16A maximum input current per MPPT
• Up to 150% EPS output for 10 seconds with less than 10ms switchover

Installation, protection and compatibility

The X1-HYBRID-7.5-D carries IP65 protection, so it is suitable for properly planned indoor or outdoor installation. SolaX lists dimensions of 482 x 417 x 181mm and a net weight of 25kg for this model. That keeps the product manageable from an installation perspective even though it sits at the top end of the single-phase X1 Hybrid G4 output range.

Protection and standards are also strong. The official X1 Hybrid G4 product page lists Type II surge protection on the AC and DC side, while official documentation for the series includes EN/IEC 62109 and G99 coverage. For installers and specifiers, those are the kinds of details that matter when turning a product choice into a real grid-connected installation.

SolaX also highlights VPP readiness, global MPP scan, smart load management, intelligent time-of-use driven energy management and CT compatibility with fast load response. Official documentation for the family also shows CT or meter support, external control via RS485 and optional Pocket communication accessories. Together, those features make the inverter more useful on battery-led systems where self-consumption, tariff-shifting and smart load control are part of the design brief.

Why this variant may be the better fit

The 7.5kW model is the clear choice where a property wants the strongest single-phase X1 Hybrid G4 option. It suits customers who need more headroom than the X1 Hybrid G4 5kW or X1 Hybrid G4 3.7kW can provide, especially when the solar array is larger and battery use is likely to be more intensive.

That makes it a particularly good fit for homes with high energy use, growing electrification or a strong interest in capturing as much roof generation as possible within a single-phase hybrid setup. It keeps the system within a familiar domestic platform while giving the installer much more room on both the PV and AC side.
