What the SolaX X3-Ultra 15kW is

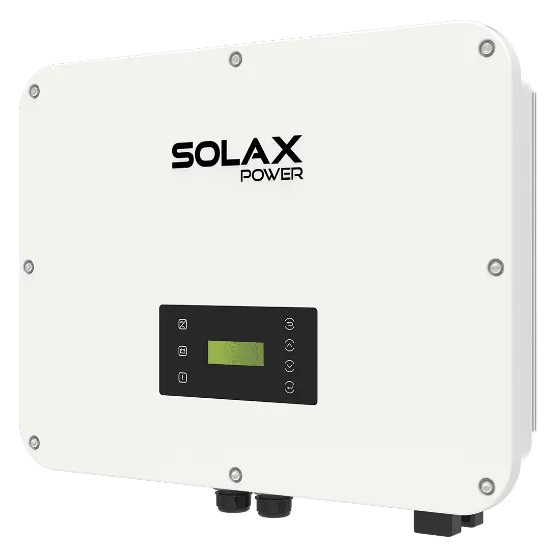

SolaX X3-Ultra 15kW Three Phase Hybrid Inverter is a commercial and industrial hybrid inverter designed to combine solar generation, battery storage, grid interaction and backup functionality in one three-phase platform. The exact model in this row is X3-ULT-15K, which is the 15kW entry point in the X3-Ultra range. That matters because the wider X3-Ultra family extends upward into larger 19.9kW, 20kW, 25kW and 30kW models, while the 15kW version gives smaller C&I projects access to the same core architecture in a more moderate output size.

The X3-Ultra is not simply a battery-ready solar inverter. It is a true hybrid platform designed around PV, storage and backup operation together. That means its battery range, EPS performance, generator and microgrid functions and parallel capability all matter just as much as its basic solar conversion figures.

Who it suits

The 15kW X3-Ultra suits commercial buildings, larger residential projects, agricultural sites and mixed-use premises that need hybrid operation rather than simple on-grid generation alone. It is especially relevant where the system brief includes battery charging and discharging, backup support, generator integration or plans for a microgrid-style setup. It can also suit projects that want to grow over time, since SolaX states that up to 10 units can be paralleled for on-grid and off-grid systems.

The model is particularly useful where PV string currents are high. SolaX’s 36A PV input per MPPT support makes the inverter better aligned with high-power modules than older hybrid inverters that become restrictive as panel current rises.

Key features and practical benefits

• 15kVA rated three-phase hybrid output.
• Up to 30kWp maximum recommended PV array power.
• Two MPPT trackers with two strings per tracker.
• 36A PV input per MPPT.
• 120V to 800V lithium battery range.
• 60A maximum charge and discharge current.
• EPS rated apparent power of 15,000VA.
• Peak EPS output at 2 times rated power for 10 seconds.
• Switchover time under 10ms.
• 200% PV oversizing and up to 110% AC output.
• Microgrid and generator functionality.
• Up to 10 units in parallel for on-grid and off-grid systems.
• IP66 enclosure, Type II SPD on AC and DC sides and optional AFCI.

The main benefit is system integration. A project using the X3-Ultra can combine PV generation, storage and backup in one inverter family rather than piecing together separate elements with more operational complexity. That can simplify project design and improve how the site responds to outages, tariff changes or wider energy-management goals.

The second major benefit is backup strength. A switchover time under 10ms and 200% EPS overload for 10 seconds make the inverter more credible for sites with sensitive loads or short-duration start-up spikes than many simpler hybrid units.

Technical details that matter in practice

The official X3-Ultra datasheet lists the 15kW model at 30,000Wp maximum recommended PV array power, 1000V maximum PV input voltage, 600V rated PV input voltage, 120V to 950V operating voltage range and 200V start-up voltage. The same datasheet confirms two MPPT trackers with two strings per tracker, 36A maximum input current per MPPT and 45A maximum short-circuit current per MPPT.

On the AC side, the datasheet lists 15,000VA rated output apparent power, 21.8A rated output current at 230V AC, 16,500VA maximum output apparent power and 24.0A maximum output continuous current. The rated AC voltage is shown as 3W/N/PE, 220/380V or 230/400V AC. Battery type is lithium, battery voltage range is 120V to 800V DC and maximum charge/discharge current is 60A DC, shown as 30 x 2.

The backup specification is one of the product’s strongest technical points. EPS rated apparent power is 15,000VA, peak EPS output power is two times rated power for 10 seconds and switchover time is listed at less than 10ms. Maximum efficiency is 98.0%, European efficiency is 97.7%, ingress protection is IP66, operating temperature range is -35°C to 60°C with derating above 45°C, dimensions are 696 x 526 x 240mm and net weight is 46kg.

Installation and fitment considerations

The X3-Ultra 15kW should be chosen where the project genuinely needs hybrid functionality rather than simple on-grid generation. That means the site should have a credible case for battery integration, backup support, generator input or microgrid behaviour. If those functions are not needed, a simpler on-grid inverter may be the more proportionate answer.

The PV side also needs careful design. Two MPPTs with two strings per tracker and 36A input per MPPT give solid flexibility, but the system designer still needs to plan string groupings, battery pairing and EPS load segregation properly. The product is particularly useful where there is a mix of solar, storage and resilience goals, not just raw generation targets.

Parallel capability can also matter. SolaX states that up to 10 X3-Ultra units can be paralleled for on-grid and off-grid systems, which gives the family long-term scalability for sites expecting future growth.

Why this exact variant may be the right choice

The X3-Ultra 15kW is the right model when the project needs the X3-Ultra architecture but does not require the larger 20kW, 25kW or 30kW outputs. It gives access to the family’s high-current battery handling, backup strength, generator functionality and parallel scalability at a more moderate output level.

Compared with a standard on-grid inverter, it is far more capable where storage and continuity matter. Compared with the larger X3-Ultra models, it can be the more proportionate fit for smaller commercial hybrid systems and larger residential three-phase hybrid projects.
