What the product is and who it suits

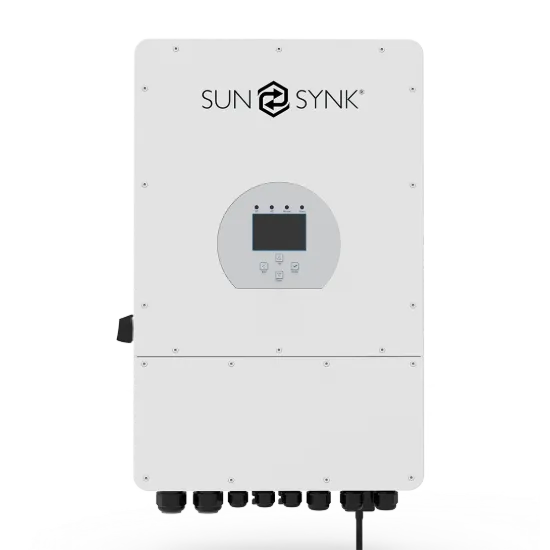

Sunsynk SYNK-10K-SG04LP3 is a three-phase hybrid storage inverter built for sites that need more than an entry-level three-phase platform but do not necessarily require the largest model in the family. It belongs to Sunsynk’s 8/10/12kW three-phase hybrid range and is designed for properties with a genuine three-phase electrical supply that want solar generation, battery storage, grid interaction and backup-oriented control in a single inverter.

In practical terms, the 10kW model suits larger three-phase homes, farms, workshops, offices, business units and smaller commercial premises where electrical demand is strong enough to justify a more capable hybrid inverter. It is also a sensible fit where the PV design is more ambitious than a smaller hybrid inverter would comfortably support, but the project still wants to remain on Sunsynk’s 48V battery platform rather than moving immediately to a high-voltage commercial system.

The official Sunsynk overview page also highlights a distinctive ability to operate and balance uneven loads across the three phases. That matters because real sites rarely distribute consumption perfectly. A three-phase inverter that can tolerate and manage uneven phase loading is more useful in practice than one that looks good only on a neat theoretical system diagram.

Key features and practical benefits

From the current Sunsynk datasheet, the SYNK-10K-SG04LP3 is listed with 10000W rated AC output and UPS power, 11000W maximum AC output power and 13000W maximum DC input power. That step up over the 8kW version is not trivial. It gives the installer more freedom on the DC side and the end user more breathing room on the AC side, which can be important on sites with higher daytime demand or larger battery-backed load expectations.

The battery section is built around a 48V low-voltage platform with a 40V to 60V battery voltage range and 210A maximum charging and discharging current. That is a major part of the model’s value because it positions the inverter as a serious hybrid control point rather than just a solar inverter with limited storage compatibility. The datasheet also states support for lead-acid or lithium-ion batteries, with battery self-adaption to the BMS for lithium.

On the solar side, Sunsynk lists a PV input voltage of 550V DC with a 160V to 800V range, MPPT range of 200V to 650V, start-up voltage of 160V, PV input current of 26A + 13A and maximum PV short-circuit current of 34A + 17A. The 10kW model is listed with two MPPT trackers and a 2+1 string-per-MPPT tracker arrangement. That makes it better suited to larger arrays or more segmented roof layouts than the 8kW unit, which uses a 1+1 arrangement.

• 10000W rated AC output and UPS power
• 11000W maximum AC output power and 13000W maximum DC input power
• 48V battery platform with 210A maximum charging and discharging current
• Two MPPTs with 200 to 650V operating range and 160V start-up voltage
• 2+1 strings per MPPT tracker arrangement for more flexible PV layout

Technical detail that matters in practice

The 10kW model is aimed at more demanding sites, so the deeper control and performance figures matter. The datasheet lists peak power at two times rated power for 10 seconds, 45A maximum continuous AC passthrough current and 75A maximum output short-circuit current. Those are the kinds of values that become important when the installation has stronger transient loads or more demanding backup expectations.

Efficiency is strong too. Sunsynk lists 97.60% maximum efficiency, 97.00% Euro efficiency and MPPT efficiency above 99%. That matters over the life of the system because hybrid inverters are often chosen for battery features and backup flexibility, but the day-in, day-out solar conversion performance is still one of the biggest contributors to long-term return.

Sunsynk also highlights frequency droop control, RS485 Wi-Fi interface support and up to 16 inverters in parallel on the official overview page. The datasheet adds BMS communication via RS485 and CAN. For larger domestic and small commercial systems, those features make the inverter a better fit for monitored, scalable hybrid design rather than a standalone closed-box installation.

Installation, protection and standards

The current datasheet lists the inverter with an IP65 enclosure, wall-mounted installation style, smart air cooling and noise of 45dB or below. The stated dimensions are 422W × 702H × 281D, excluding connectors and brackets, with a net weight of 38.5kg. Those figures place it clearly in the professional wall-mounted three-phase category: compact enough to install sensibly, but substantial enough to need proper siting and access planning.

The protection package is extensive. Sunsynk lists PV arc fault detection, PV input lightning protection, anti-islanding protection, reverse polarity protection, insulation resistor detection, residual current monitoring, output over-current protection, output shorted protection and Type II surge protection on the DC and AC sides. For hybrid systems that may be handling solar, batteries, grid interaction and generator input, that level of built-in protection is important.

The datasheet standards list includes EN 50549-1, AS-NZS 4777.2 and NRS 097-2-1 for grid regulation, plus IEC/EN 61000-6-1/2/3/4 and IEC/EN 62109-1/2 for EMC and safety. That gives the model a well-defined technical basis for specification work. Sunsynk also lists the family with a 5 year warranty.

Why this variant may be the right choice

The 10kW model is often the most balanced choice in this three-phase family. It gives more AC output, more PV headroom and more battery current than the 8kW version, but it does not push all the way to the largest model. For many larger homes and smaller commercial sites, that makes it a particularly comfortable match.

It is also attractive where the PV layout is a little more involved. The listed 2+1 string-per-MPPT arrangement gives more layout flexibility than the 8kW version, which can matter on roofs with different sections or on systems where the array is built in a more segmented way. Buyers who need the maximum output in the family may still prefer the 12kW model, but the 10kW version is often the clearest middle-ground option.
