What the product is and who it suits

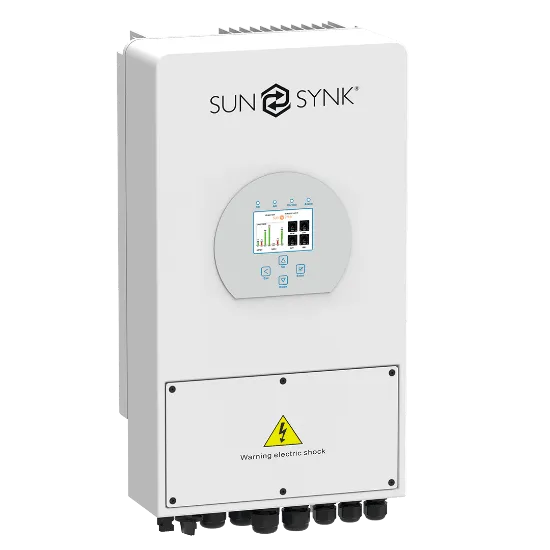

Sunsynk ECCO 8.8kW is the top single-phase ECCO hybrid inverter in this range and is aimed at properties with materially higher energy demand than a typical entry-level residential solar system. The official Sunsynk product page for model SYNK-8K-SG05LP1 lists 8000W continuous power and 8000W backup power. In practical terms, that makes the inverter suitable for larger homes, electrically busy households, workshops, outbuildings and other single-phase sites where multiple loads may need to be supported more comfortably from one hybrid platform.

This model exists for a very specific reason. Some properties have only a single-phase supply but still want meaningful solar generation, substantial battery support and a hybrid inverter that can deal with heavier energy use. In that context, the ECCO 8.8kW is the obvious step up from smaller single-phase models. It allows the buyer to stay on a single-phase architecture while gaining noticeably more capacity on both the solar and battery sides.

As a hybrid inverter, it is not limited to DC-to-AC conversion. Sunsynk lists PV solar, AC grid power, batteries and generator input, so the inverter is designed to manage several energy sources. That means it can help a property use solar directly during the day, charge a battery for later use, provide backup-oriented functionality and make more deliberate decisions about when energy is imported or exported.

Key features and practical benefits

Official Sunsynk ECCO data lists 8000W continuous power and 8000W backup power on a 48V battery platform. The listed battery charger is 190A, which is a substantial figure for a single-phase low-voltage hybrid inverter. That matters because higher battery current capability supports a stronger storage role within the system, provided the battery bank and installation design are matched appropriately.

The solar side is equally important. Sunsynk lists up to 10400W maximum solar input, maximum DC input of 370V within a 100V to 500V range, maximum current input of 26A + 26A, two MPPTs and an MPPT range of 125 to 425V. Those are strong numbers for a single-phase hybrid unit and make the inverter far more comfortable on larger arrays than smaller residential models. Two MPPTs also help when the array is split across two roof aspects or where different sections of the system need separate tracking.

Sunsynk states that the inverter can charge lead-acid and lithium batteries, with lithium-ion charging self-adapting to the BMS. That gives installers greater freedom when pairing storage with the inverter and keeps the platform attractive to buyers who may already have a preferred battery direction in mind.

• 8000W continuous output and 8000W backup power
• 48V battery platform with 190A battery charger
• Two MPPTs with up to 10400W maximum solar input
• 125 to 425V MPPT range with 26A + 26A maximum input current
• Support for lead-acid and lithium batteries with BMS self-adaption for lithium

Technical detail that matters in practice

Sunsynk lists transfer time at less than or equal to 10ms, which is useful in backup-oriented hybrid setups. It also lists the same four operating modes found across the ECCO family: grid-tie only, hybrid, off-grid and battery only. Those options matter because the buyer at this output level often wants more than just solar self-consumption. They may want deliberate time-based charging, more control over stored energy, or a stronger resilience proposition for selected circuits.

The control features are one of the stronger reasons to choose the ECCO platform. Sunsynk lists programmable export, AC coupling for additional PV input, six stages of time-of-use settings and an ECCO-only meter port. On a larger single-phase system, those features are commercially useful. Time-of-use control can help shape battery charging around tariff windows. Programmable export can be important where export behaviour needs to be managed more carefully. The meter port also adds value to more advanced control strategies.

The official product page further states that the inverter works in parallel on or off-grid. That supports expansion and more ambitious system design where the wider installation has been planned correctly. Even if a buyer never uses that feature, it underlines that the inverter is part of a more capable hybrid platform rather than a basic one-size residential unit.

Installation, standards and long-term fit

The ECCO 8.8kW carries an IP65 enclosure rating, which makes it suitable for appropriately planned indoor or outdoor installation. This matters even more at higher output because the inverter is likely to be part of a larger whole-house or mixed-use system where battery location, wall space and cable runs influence the final install position.

From the Sunsynk certification library, the SG05LP1 single-phase family is supported by EN 50549-1 and IEC/EN 62109 certification documents, alongside UK and EU declarations of conformity. That gives the inverter a more credible technical footing for specification work than simple reseller feature lists.

For UK customers, Sunsynk’s warranty registration page states that UK products are automatically covered under warranty and that proof of purchase from the installer stands as warranty evidence. The inverter category is generally sold with a 5 year warranty, which is the key duration for catalogue use.

Why this variant may be the right choice

The ECCO 8.8kW is the right choice when a property has only a single-phase supply but wants more than a mid-sized hybrid inverter can realistically deliver. That could be because the house is large, because the occupants have high daytime and evening consumption, or because the solar array and battery plan are both larger than normal.

This model’s real appeal is that it lets the project remain single-phase while still moving into a more capable hybrid bracket. The stronger battery charger, larger PV allowance and higher continuous output are all meaningful. For buyers who do not need a three-phase rework but do need a more serious hybrid inverter, this is the clear ECCO option.
