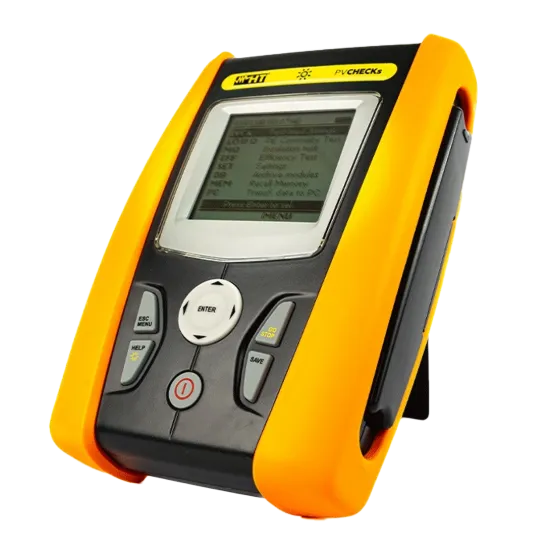

TIS PVCHECKS: Versatile Multifunction Solar Commissioning Checker

The TIS PVCHECKS is designed as a comprehensive tool for carrying out quick checks and essential safety tests on photovoltaic modules, strings, and fields up to 1000V DC / 15A. According to its instruction manual, it complies with the IEC/EN62446 standard for commissioning tests and offers additional efficiency evaluation capabilities when paired with optional accessories.

Core Commissioning Functions (IEC/EN62446)

Perform essential safety and functionality tests required for PV system sign-off:

• Continuity Test (LOWΩ): Verifies protective conductors with a test current >200mA. Includes calibration function for test leads.
• Insulation Resistance (MΩ): Measures insulation with selectable test voltages of 250V, 500V, and 1000V DC. Offers FIELD, TIMER, and STRING modes for flexibility (STRING mode includes automatic P/N short-circuit).
• Open Circuit Voltage (Voc): Measures Voc on modules/strings up to 1000V DC.
• Short Circuit Current (Isc): Measures Isc on modules/strings up to 15A.
• IVCK Quick Checks: Performs rapid verification of Voc and Isc, providing an immediate OK/NO result based on comparison with previous tests or STC values (if irradiance is measured). Can run Insulation and Continuity tests sequentially if enabled.

DC Efficiency Evaluation (Requires SOLAR-02)

Assess the performance of the PV installation (DC side):

• Parameter Measurement: Measures DC Voltage, DC Current (requires optional clamp), and DC Power at the PV generator output.
• Environmental Data: Measures irradiance (W/m²) and temperature (module and ambient) using probes connected to the optional SOLAR-02 remote unit (RF connection).
• Efficiency Calculation (nDC): Calculates DC efficiency, applying compensation based on temperature, and provides an immediate evaluation against user-set limits. Recording of parameters is possible with programmable intervals (5s to 60min).

Why Evergy Recommends This Product

The TIS PVCHECKS provides a solid foundation for PV commissioning and testing, particularly for systems up to 1000V.

• All-in-One Safety & Functionality: Combines the essential IEC/EN62446 tests (Insulation, Continuity, Voc, Isc) in one instrument.
• Efficiency Option: Offers the capability to perform DC efficiency analysis with the addition of the SOLAR-02 unit, providing deeper performance insights which can be relevant to expected outputs based on energy tariffs.
• User-Friendly: Features include a backlit display, internal module database (up to 30 modules), result storage (up to 999 measurements), and PC connectivity via optical/USB cable for use with TopView software.
• Flexible Insulation Testing: Multiple modes (FIELD, TIMER, STRING) cater to different testing scenarios for panels, strings, or unearthed metalwork connected to the solar mounting.

Technical Highlights

Key specifications derived from the instruction manual:

• Max DC Voltage (Voc / Efficiency): 1000V (Accuracy ±1.0%rdg + 2dgt)
• Max DC Current (Isc): 15A (Accuracy ±1.0%rdg + 2dgt)
• Insulation Test Voltages: 250V, 500V, 1000V DC
• Continuity Test Current: >200mA DC
• Safety Category: CAT III 300V to earth, Max 1000V between inputs

For full capabilities and accuracy details, please refer to the instruction manual PDF.

What's Included?

Standard accessories typically include test leads, batteries, software, connection cables, and a carrying case. Please check the specific packing list upon purchase.

Streamline Your PV Commissioning

The TIS PVCHECKS is a reliable multifunction tester for ensuring safety and functionality in PV installations up to 1000V. Pair it with our range of solar inverters and solar batteries for complete system solutions. Contact us for further information.
