What the SolarEdge SE1000-CCG-G-S1 is

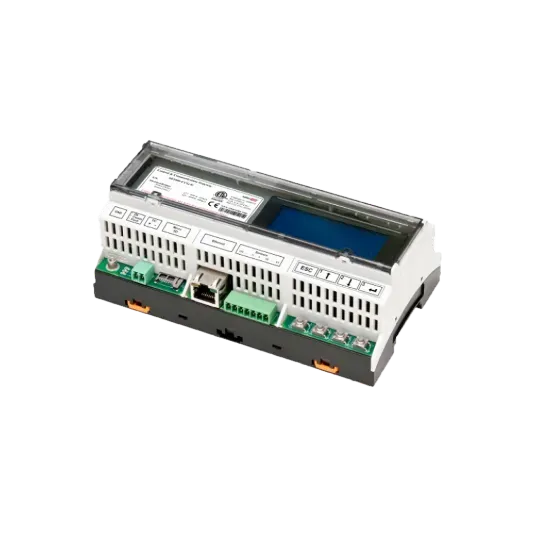

The SolarEdge SE1000-CCG-G-S1 is a commercial communication gateway for SolarEdge PV systems. SolarEdge’s official datasheet describes it as an all-in-one communication gateway that expands the SolarEdge system’s monitoring and control capabilities. In practical terms, it acts as a central communications hub for sites that need more than just direct inverter-to-router connectivity.

That means it is most useful on sites with multiple inverters, environmental sensors, energy meters, export control requirements or integration with non-SolarEdge data logging. Rather than adding separate control hardware for each function, the gateway helps organise these connections through one device.

Who it suits

This model suits commercial and larger non-domestic solar systems where the installer needs to gather data from more than one source and present it in a coordinated way. Offices, warehouses, schools, farms and mixed-use buildings are all typical examples. It is especially useful where the site wants energy-meter readings, irradiance or temperature inputs and structured communication through RS485 and Ethernet.

It also suits projects where future system changes are possible. A well-chosen communications hub can make the rest of the site easier to modify later, because the communications structure has already been planned properly.

Verified functionality from SolarEdge documentation

SolarEdge’s official Commercial Gateway datasheet confirms the main role and features of the SE1000-CCG-G-S1. SolarEdge states that it:

• Expands SolarEdge monitoring and control capabilities
• Connects to third-party data loggers
• Supports environmental sensors including irradiance, temperature and wind
• Includes a power reduction interface for inverter control
• Supports optional wireless connectivity including Wi-Fi and cellular modules

These points make it clear that the gateway is not just a simple accessory. It is intended to organise a more complex commercial site where communications, measurement and control are part of day-to-day operation.

Communications and control in practice

The datasheet confirms 2 x RS485 interfaces, Ethernet, optional Wi-Fi, an optional cellular module interface and a 4-pin power reduction interface. SolarEdge also states that the gateway supports SolarEdge devices, inverter data export, revenue meters and export to non-SolarEdge loggers.

For an installer, that means the gateway can be used in several different site architectures. It can extend wired communication distance, sit in parallel with a non-SolarEdge logger, connect the power reduction interface, collect analogue sensor data, read electricity meter data or connect through a cellular path where required. Those are real commercial use cases, not theoretical extras.

Sensor support and why it matters

SolarEdge confirms that the gateway includes three analogue sensor inputs. The datasheet lists input ranges that support sensor integration and identifies environmental sensor use cases in its connection examples. On better-specified commercial sites, that matters because performance analysis is more useful when generation data can be compared with site conditions such as irradiance and temperature.

Where the customer wants more than a basic monitoring portal view, the Commercial Gateway becomes the point where those additional inputs are organised.

Physical format and installation fit

SolarEdge lists the SE1000-CCG-G-S1 with a supply voltage of 9 to 14Vdc and power consumption below 2W. The datasheet confirms DIN rail or wall mount installation, IP20 protection for indoor use, operating temperatures from -20°C to +60°C, dimensions of 165 x 90.5 x 53.5mm and a weight of 0.5kg.

That makes it straightforward to fit inside a control cabinet or communications area without demanding large amounts of space. Low power draw also helps, particularly on sites where communication and control devices are expected to remain active continuously.

Commercial relevance and system pairing

The gateway works naturally alongside SolarEdge commercial inverters, SolarEdge energy meters and RS485-connected site hardware. SolarEdge’s connection examples show use with electricity meters, non-SolarEdge loggers, analogue sensors and a cellular route to the monitoring platform. That makes it particularly useful where the PV system is part of a wider building or facility management arrangement rather than a stand-alone generation asset.

For many larger sites, that is the point. The gateway is not just there to move data. It is there to help make the solar system easier to supervise and easier to connect into broader control logic.

Why this variant may be the right choice

The SE1000-CCG-G-S1 is a strong choice when a site needs structured SolarEdge communications and control in a small, cabinet-friendly format. It provides the core wired and Ethernet connections needed for a range of commercial control scenarios, supports analogue sensor inputs and gives installers a flexible way to organise multi-device communication on site.

Where simple inverter-only monitoring is enough, the gateway may be more than the project needs. Where the site includes meters, sensors, export control or third-party logger interaction, the Commercial Gateway becomes much more valuable.
