What the SolarEdge SE-100K-FUSE-FULL is

The SolarEdge SE-100K-FUSE-FULL is a 100kW three-phase commercial inverter system in SolarEdge’s Synergy family for 380/400V grids. It is the highest-output model in the 66.6kW, 90kW and 100kW 400V commercial Synergy range, which makes it the natural choice where a site wants to extract the maximum low-voltage commercial capacity from this product platform.

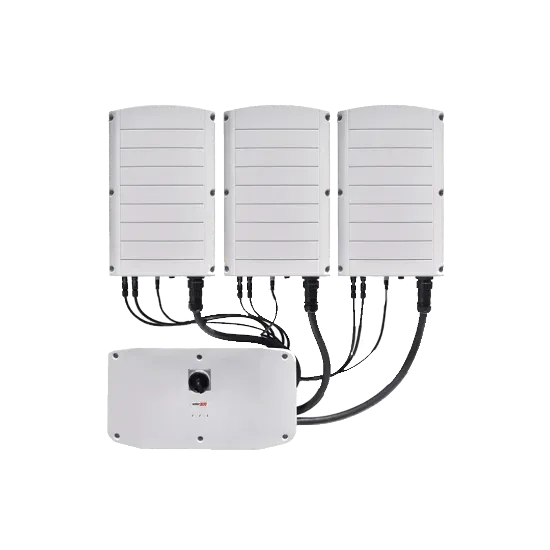

Like the other Synergy models, it is built around one Synergy Manager and three Synergy Units. That means the system keeps SolarEdge’s modular installation and service concept even at the top of the family, rather than forcing the installer into a single very large enclosure.

Who it suits

The SE-100K-FUSE-FULL suits large warehouses, distribution hubs, industrial facilities, agricultural buildings, public-sector estates and other commercial sites with substantial roof area and serious daytime electricity demand. It is particularly useful where the design brief is ambitious and the client wants strong AC output from a single inverter family member while retaining optimiser-based monitoring and large DC-side flexibility.

It also suits projects where roof space is plentiful and the PV design team wants to maximise module capacity around the inverter stage. The larger the roof, the more valuable SolarEdge’s documented oversizing allowance becomes.

Verified electrical performance for the 100kW variant

SolarEdge’s official Synergy inverter datasheet confirms the following key figures for the SE100K:

• Rated AC active output power: 100,000W
• Maximum AC apparent output power: 100,000VA
• Maximum DC power: 175,000W
• Maximum input voltage: 1000Vdc
• Operating voltage range: 680 to 1000Vdc
• Maximum input current: 3 x 48.25Adc
• Maximum inverter efficiency: 98.1%
• European weighted efficiency: 98%
• Maximum continuous output current per phase: 145Aac

These figures position the inverter clearly as the flagship 400V-grid model in this family. SolarEdge’s commercial literature highlights up to 175% DC oversizing, which is especially important at this power level. On larger commercial roofs, that oversizing freedom can have a direct effect on annual energy yield and overall roof utilisation.

Why the 100kW variant matters

The main reason to choose the SE-100K-FUSE-FULL over the 66.6kW or 90kW models is headroom. Some sites do not simply need a larger inverter in theory. They need a model that can support the largest realistic low-voltage rooftop design within this family, while keeping the system architecture consistent across procurement, commissioning and service.

That matters for commercial buyers because higher capacity can reduce the need to spread the project across more inverter bodies than necessary. For a large rooftop, a single high-output family member can simplify plant layout and help keep the design cleaner.

Synergy architecture and installation advantages

SolarEdge’s official Synergy datasheet describes the family as a lightweight modular design for easier installation and maintenance. The SE100K uses three Synergy Units and one Synergy Manager. SolarEdge lists each Synergy Unit at 558 x 328 x 273mm and 32kg, while the Synergy Manager is 360 x 560 x 295mm and 18kg.

Those dimensions matter on commercial sites where access routes, wall space and handling constraints can all slow installation. SolarEdge also highlights pre-commissioning for automated validation of system components and wiring during site installation and before grid connection, which is particularly useful on larger projects with tighter delivery schedules.

Protection, safety and system resilience

The official Synergy inverter datasheet confirms a strong integrated protection package. SolarEdge lists built-in arc fault protection, integrated field-replaceable Type II DC surge protection, integrated field-replaceable Type II RS485 surge protection, optional field-replaceable Type II AC surge protection, optional 25A DC fuses and an optional DC disconnect switch. SolarEdge also notes built-in thermal sensors for faulty wiring detection.

On a 100kW commercial rooftop, these features are not abstract technical extras. They help reduce external protection clutter, support safer service conditions and make the inverter better suited to long-term asset management.

Monitoring, communications and commercial control

SolarEdge confirms communications through 2 x RS485, Ethernet, optional Wi-Fi and optional Cellular. Commissioning uses the SetApp mobile application through the built-in Wi-Fi access point. SolarEdge also confirms built-in module-level monitoring and Smart Energy Management Export Limitation.

For commercial operators, those features help turn the inverter into an actively managed site asset. Module-level visibility makes it easier to locate underperforming areas of a very large array, while SetApp and structured communications options support faster commissioning and better long-term service access.

Environmental and installation details

SolarEdge lists an operating range of -40°C to +60°C, IP65 protection for indoor or outdoor installation, fan cooling and noise below 67dBA. The inverter supports 4 MC4 pairs per Synergy Unit. Safety and grid compliance listed by SolarEdge include IEC 62109-1, IEC 62109-2, EN 50549-1 and EN 50549-2.

Those specifications help explain why the model is frequently selected for larger commercial sites. It is intended for real plant conditions, not only sheltered electrical rooms, and it sits on a compliance base that makes specification more straightforward.

Why this variant may be the right choice

The SE-100K-FUSE-FULL is the correct fit when a site needs the highest-output 400V-grid Synergy inverter in the family. It combines maximum family AC capacity, very strong DC oversizing headroom, SolarEdge optimiser compatibility, integrated DC and RS485 protection and the practical service benefits of a modular three-unit commercial platform.

Where a site can be served by less output, the lower siblings are the SE-66.6K-FUSE-FULL and SE-90K-FUSE-FULL. When maximum family output is required, the SE-100K is the direct answer.
