What the SolarEdge SE-90K-FUSE-FULL is

The SolarEdge SE-90K-FUSE-FULL is a 90kW three-phase commercial inverter system in SolarEdge’s Synergy family for 380/400V grid applications. It is designed for use with SolarEdge power optimisers and sits between the 66.6kW and 100kW variants in the family. For many commercial rooftops, that makes it a very practical middle ground because it offers a substantial step up in AC capacity without forcing the project to the top family size.

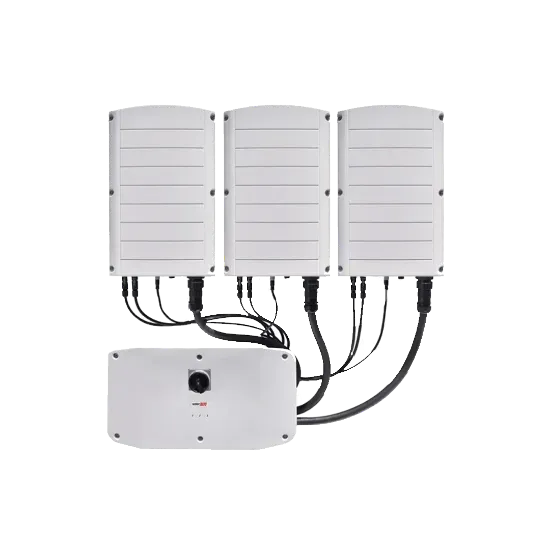

The model uses one Synergy Manager and three Synergy Units. That modular layout is central to its value, because SolarEdge specifically developed the Synergy range to improve handling, site installation and service access on larger commercial systems.

Who it suits

The SE-90K-FUSE-FULL suits warehouses, food production facilities, agricultural premises, schools, offices and light industrial buildings with large roof areas and significant daytime electricity demand. It is especially useful where 66.6kW is too limiting but the project does not need the maximum 100kW family variant.

It also suits sites where the installer wants to keep the advantages of optimiser-based SolarEdge architecture on a larger roof. On bigger systems, panel-level visibility becomes even more valuable because there are more modules, more roof zones and more potential causes of uneven performance.

Verified electrical performance for the 90kW variant

SolarEdge’s official Synergy inverter datasheet confirms the key figures for the SE90K:

• Rated AC active output power: 90,000W
• Maximum AC apparent output power: 90,000VA
• Maximum DC power: 157,500W
• Maximum input voltage: 1000Vdc
• Operating voltage range: 680 to 1000Vdc
• Maximum input current: 3 x 48.25Adc
• Maximum inverter efficiency: 98.1%
• European weighted efficiency: 98%
• Maximum continuous output current per phase: 145Aac

Those values show the real role of this variant. The inverter can sit at the centre of a much larger commercial array than the 66.6kW model, while still keeping the site within a low-voltage 90kW commercial inverter class. SolarEdge’s commercial literature also highlights up to 175% DC oversizing for the Synergy range, which is valuable where roof area is plentiful and the project aims to squeeze more yield from the available PV surface.

Why the 90kW variant matters

The buying case for the SE-90K-FUSE-FULL is about proportionality. Some commercial roofs are simply too large for 66.6kW to be the right answer, yet may not justify moving directly to 100kW. In those cases, the 90kW variant becomes the family’s balance point. It offers a noticeable uplift in inverter headroom and DC-side design flexibility, while keeping the same Synergy installation logic and commercial protection set.

That matters for specifiers because it reduces the temptation to overbuild or underbuild the inverter stage. The 90kW class often lands in the practical sweet spot for large standalone rooftops.

Synergy architecture and serviceability

SolarEdge states that Synergy technology is built around lightweight modular sections and a pre-commissioning process for faster installation. For the 90kW model, the datasheet confirms three Synergy Units per inverter. Each Synergy Unit is listed at 558 x 328 x 273mm and 32kg, while the Synergy Manager is 360 x 560 x 295mm and 18kg.

Those figures matter because large commercial inverters can be difficult to move into place or replace once installed. SolarEdge’s modular design keeps handling more manageable and also supports easier servicing, because the platform is intended for independent Synergy Unit operation and clearer fault isolation.

Protection, safety and system resilience

The official datasheet confirms built-in arc fault protection, integrated field-replaceable Type II DC surge protection, integrated field-replaceable Type II RS485 surge protection, optional field-replaceable Type II AC surge protection, optional 25A DC fuses and an optional DC disconnect switch. SolarEdge also highlights built-in thermal sensors for faulty wiring detection.

On commercial sites, those protections are important because they help support a cleaner system layout and reduce reliance on extra surrounding hardware. Combined with panel-level monitoring, they also make the inverter better suited to long-term professional maintenance.

Monitoring, communications and commissioning

SolarEdge confirms communications through 2 x RS485, Ethernet, optional Wi-Fi and optional Cellular. The inverter is commissioned using the SetApp mobile application through the built-in Wi-Fi access point. SolarEdge also confirms built-in module-level monitoring and Smart Energy Management Export Limitation.

For larger commercial sites, those capabilities are not optional extras. They support more efficient commissioning, clearer performance visibility and better long-term asset management. A site owner can see more than gross output, and an installer can diagnose issues without relying on guesswork.

Installation and environmental fit

SolarEdge lists an operating range of -40°C to +60°C, an IP65 enclosure for indoor or outdoor installation, fan cooling and noise below 67dBA. The published standards include IEC 62109-1, IEC 62109-2, EN 50549-1 and EN 50549-2. For UK commercial solar work, that makes the inverter suitable for serious project environments rather than only sheltered internal plant spaces.

The datasheet also lists 4 MC4 pairs per Synergy Unit, which supports the inverter’s large-array commercial role and helps the installer plan around the modular unit layout.

Why this variant may be the right choice

The SE-90K-FUSE-FULL is the strongest choice when a site needs more output and more DC headroom than the 66.6kW model offers, but still wants to stop short of the maximum 100kW family size. It keeps all the core SolarEdge Synergy benefits of modular installation, panel-level monitoring, integrated DC protection and SetApp commissioning, while matching larger commercial roofs more naturally.

Projects that need the very top family tier can step up to the SE-100K-FUSE-FULL. Where the brief is high output without immediately going to the family maximum, the SE-90K is often the more proportionate fit.
