What the Solarwatt Panel vision AM 4.5 Pure 425Wp is

Solarwatt Panel vision AM 4.5 Pure 425Wp is a framed glass-glass solar module within Solarwatt’s AM 4.5 family. The exact row here refers to the 425Wp Pure variant. In practical terms, that means the panel uses the same core medium-format 108-cell bifacial TOPCon platform as the sibling versions, but it is differentiated by its silver frame and white printed rear glass. That variant detail matters because it directly affects how the finished array will look on the building.

For many domestic and mixed-use projects, the visual finish of the module is not secondary. It can shape whether the array feels integrated with the property or visually dominant. The Pure version is the one aimed at buyers who want a lighter, more traditional panel appearance while keeping the same 425Wp class output and glass-glass construction benefits as the rest of the range.

Who it suits

Panel vision AM 4.5 Pure 425Wp suits buyers who want a high-output medium-format module but prefer a silver-framed, lighter-looking finish over a dark or transparent style-led alternative. It is a sensible choice for residential rooftops where the array will be visible, especially on more traditional homes or lighter roof finishes where a black-framed module may feel visually heavy. It also suits installers working on projects where the customer wants a premium module but has clear aesthetic preferences that point away from black-edged panels.

The Pure version can also be a practical way to align a new array with existing visual cues on a property. Roofs with lighter tiles, older architectural detailing, or more conventional elevations may suit the white printed backing better than the stronger contrast of a black module.

Key features and practical benefits

• 425Wp nominal output with 21.8% module efficiency.
• 108 monocrystalline bifacial high-power TOPCon half-cut cells.
• Glass-glass laminate construction with silver aluminium frame.
• White printed rear glass in the Pure variant.
• IP68 protection and 1,500V maximum system voltage.
• Pressure load up to 5,400 Pa and suction load up to 2,400 Pa.
• 30 year product warranty and 30 year performance warranty on 90% of nominal power.

The benefit of this exact version is that it gives the buyer a more classical visual treatment without moving to an older or lower-performing module design. The published data still confirms bifacial TOPCon cells, glass-glass module technology, MC4-Evo 2 connectors, and the same 425Wp class output as the style-led sibling. That makes the Pure version a presentation choice rather than a downgrade.

The mechanical and environmental specifications are also relevant to real installations. A module that pairs a traditional look with IP68 protection, tempered glass front and rear, and meaningful static load ratings is easier to justify on long-life domestic and mixed-use projects where the customer is thinking in decades rather than short-term yield alone.

Technical details that matter in practice

Solarwatt’s AM 4.5 technical sheet lists the 425Wp class at 32.2V nominal voltage, 13.2A nominal current, 38.6V open circuit voltage, 13.8A short circuit current, and 21.8% module efficiency. The module format uses 108 bifacial monocrystalline high-power TOPCon cells with 182 x 91mm cell dimensions. Overall module dimensions are 1,722 x 1,134 x 35mm and the module weight is 24kg.

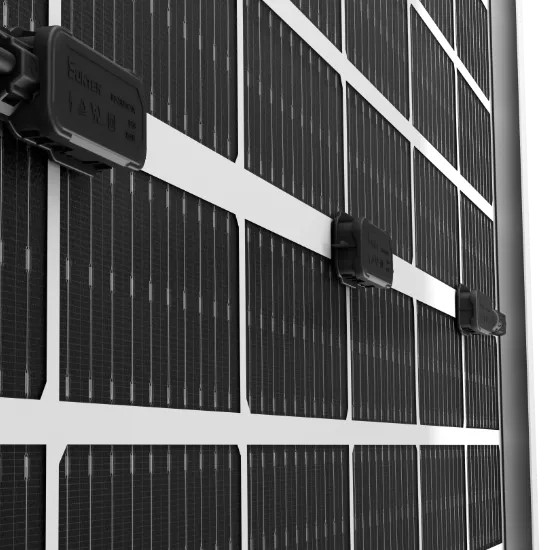

The construction detail matters because the Pure version is not a standard glass-foil module with a white backsheet. It remains a glass-glass laminate with tempered solar glass on the front and tempered glass on the rear, with the spaces between the cells printed in white for the Pure finish. That means the product keeps the durability case associated with glass-glass construction while presenting a lighter roof-facing look.

Connection and installation details are equally useful. The module uses 2 x 1.2m, 4 mm² cables with Stäubli Electrical MC4-Evo 2 connectors and includes 3 bypass diodes. Maximum system voltage is 1,500V. The module carries IP68 protection and protection class II according to IEC 61140, with fire class A according to IEC 61730 and UL 790. Solarwatt also lists pressure load up to 5,400 Pa with test load to 8,100 Pa and suction load up to 2,400 Pa with test load to 3,600 Pa.

Installation and fitment considerations

Panel vision AM 4.5 Pure 425Wp fits within a familiar framed-panel installation workflow, which is useful for domestic and small commercial arrays where designers want premium module construction without stepping into larger commercial panel sizes. The 35mm frame depth, 24kg mass, and medium-format footprint make it easier to integrate on common rail-based mounting systems intended for framed modules.

The Pure finish is particularly useful where the visual brief is conservative or traditional. On certain properties, a black-framed panel can stand out more than the customer wants. The silver frame and white printed backing help the array read more softly. That does not change the core electrical design work, but it can change the quality of the finished project from the customer’s point of view.

Installers should still design strings, mounting zones, and structural support around the published electrical and mechanical limits. The benefit here is that the product does not ask them to trade installation familiarity for design sensitivity.

Why this exact variant may be the right choice

The Pure 425Wp variant is the right AM 4.5 option when the customer wants the verified output, connectors, and warranty package of the family but prefers a lighter finish. It is most likely to suit homes and buildings where silver framing and white printed rear glass feel more appropriate than black visual elements. In that sense, the variant difference is commercially meaningful and not just descriptive naming.

Compared with the Style version, the Pure panel is less architectural and less transparent. Compared with the Black version, it is visually softer and more conventional. Buyers who want the array to disappear into darker roof finishes may choose the Black module instead. Buyers who want a lighter, more familiar solar appearance will usually be better served by the Pure version.
