What the Solarwatt Panel vision AM 4.5 Style 425Wp is

Solarwatt Panel vision AM 4.5 Style 425Wp is a medium-format framed glass-glass solar panel designed for long service life and strong output from a 108-cell bifacial TOPCon platform. The exact product variant here is the Style version at 425Wp. That matters because Solarwatt differentiates the AM 4.5 family by finish as well as by power class. In this version, the module combines the AM 4.5 platform with a transparent rear glass design that gives the panel a lighter, more architectural appearance than the printed black or printed white alternatives in the same range.

For a buyer or installer, that means the module is not only a power decision. It is also a visual decision. The Style version is the one to consider when the array will be clearly visible on the building, when a softer look is preferred, or when the panel is being used on a canopy, pergola, carport, or other setting where transparency between the cells has practical and aesthetic value.

Who it suits

Solarwatt Panel vision AM 4.5 Style 425Wp suits projects that need a proven 425Wp panel with a more open, design-led finish. Typical applications include residential rooftops where aesthetics carry weight, visible outbuildings, bespoke garden structures, and carport or canopy-style layouts where a standard opaque look is not the best fit. It can also suit commercial or semi-commercial projects where the solar array forms part of the visual language of the site rather than being treated as purely functional plant equipment.

The Style finish is also helpful where a buyer wants a cleaner separation from the more common full-black module look. Instead of relying on printed backing to create a dark visual field, this version uses transparent rear glass. That changes how the module reads from below and across the roofline, while still retaining the practical benefits of a framed glass-glass build.

Key features and practical benefits

• 425Wp nominal output from 108 monocrystalline bifacial high-power TOPCon cells.
• 21.8% module efficiency in the 425Wp class.
• Glass-glass laminate construction with aluminium frame.

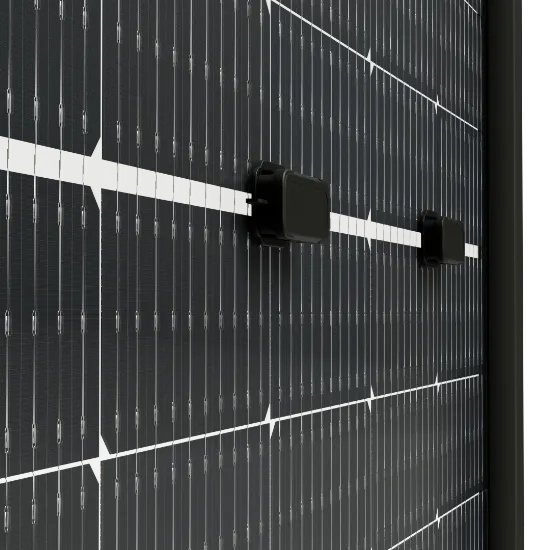

• Transparent rear glass in the Style variant for a lighter, more architectural appearance.
• IP68 protection, 1,500V maximum system voltage, and 3 bypass diodes.
• Pressure load rating up to 5,400 Pa and suction load rating up to 2,400 Pa.
• 30 year product warranty and 30 year performance warranty on 90% of nominal power.

The biggest practical benefit is the balance between output and presentation. At 425Wp, the module sits in a strong residential-friendly power class, helping designers build useful system capacity without moving into a physically larger module format. At the same time, the Style construction gives the module a more refined visual character than printed-back options, which can matter on premium homes, exposed elevations, and visible ancillary structures.

The glass-glass structure is also important in practice. Solarwatt’s published data positions the panel as a long-life product with the cells embedded between layers of tempered glass and POE encapsulation. That construction approach supports long-term resistance to weather exposure and mechanical stress, which is a meaningful buying factor for customers who want durability as well as appearance.

Technical details that matter in practice

Solarwatt’s technical data for the AM 4.5 family confirms that the 425Wp class delivers 32.2V nominal voltage, 13.2A nominal current, 38.6V open circuit voltage, 13.8A short circuit current, and 21.8% module efficiency. The module uses 108 bifacial monocrystalline TOPCon half-cut cells with cell dimensions of 182 x 91mm. The frame height is 35mm, overall dimensions are 1,722 x 1,134 x 35mm, and weight is 24kg.

Connection details are equally relevant for system design. The module uses 2 x 1.2m, 4 mm² leads with Stäubli Electrical MC4-Evo 2 connectors and includes 3 bypass diodes. The maximum system voltage is 1,500V, which keeps it compatible with mainstream string design approaches in properly engineered systems. The panel is rated IP68 and carries protection class II according to IEC 61140, with fire class A according to IEC 61730 and UL 790.

Mechanical ratings matter for installers and specifiers working on exposed sites. Solarwatt lists pressure load up to 5,400 Pa with test load to 8,100 Pa and suction load up to 2,400 Pa with test load to 3,600 Pa. That gives the module credible framing for roof and supported structure use where wind and snow loading must be taken seriously during system design.

Installation and fitment considerations

Panel vision AM 4.5 Style 425Wp is a framed module, so it belongs in mounting systems designed for framed glass-glass PV panels of this size and thickness. The 35mm frame and medium-format footprint make it easier to integrate than larger commercial-format modules on many domestic and mixed-use roofs. Designers still need to respect the published mounting zones, load assumptions, and electrical limits in the installation documents, but the module format itself is familiar territory for competent PV installers.

The transparent Style backing has an installation implication as well as a visual one. It is especially worthwhile where the back of the panel may be seen or where the design brief values a lighter finish. On a standard pitched roof that may be mostly a visual preference from street level. On a canopy or carport it can become a much more noticeable differentiator because the module is visible from both above and below.

Cable and connector details are installer-friendly rather than unusual. The 1.2m lead length and MC4-Evo 2 connector format fit normal PV system practice, which reduces the risk of the panel becoming awkward to integrate within the wider DC side layout.

Why this exact variant may be the right choice

The AM 4.5 Style 425Wp makes the most sense when the buyer wants the AM 4.5 family but does not want the visual density of a printed black or printed white rear finish. The 425Wp power class is strong for a panel of this size, and the Style format offers a genuine product-level difference rather than a cosmetic name change. It is the variant to choose when the array is meant to be seen and when a more architectural treatment is part of the project brief.

Compared with the Pure version, the Style panel is visually lighter and less traditional. Compared with the Black version, it avoids the darker printed field and can look more refined in exposed or design-led settings. Buyers who simply want the least visually expressive option may lean elsewhere. Buyers who want the module to contribute positively to the look of the installation are the ones most likely to see the value here.
