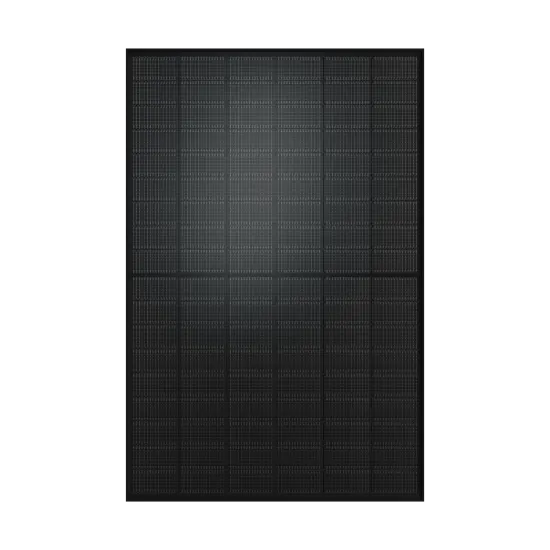

What the Solarwatt Panel vision M 5.0 Black 450Wp is

Solarwatt Panel vision M 5.0 Black 450Wp is a framed glass-glass solar panel in the M 5.0 family, specified here in the Black finish at 450Wp. The exact position of this variant matters. It sits above the 445Wp Style version and below the 455Wp Pure version in published power class, while using the black-finish presentation preferred on many contemporary roof projects. It is therefore not simply a generic black solar panel. It is a specific medium-format M 5.0 variant with its own balance of output, finish, and suitability.

The M 5.0 family is built around 108 bifacial monocrystalline high-power TOPCon half-cut cells and a framed glass-glass construction. In the Black version, the panel uses a black aluminium frame and black printed rear glass, making it the most obvious choice for buyers who want a darker roofline result from the M 5.0 platform.

Who it suits

Panel vision M 5.0 Black 450Wp suits homes, extensions, barns, and mixed-use buildings where the system brief calls for a darker visual finish but also wants more output and stronger published mechanical ratings than the AM 4.5 family. It is especially relevant for visible slate roofs, darker tiled roofs, and more contemporary designs where the customer wants the array to sit as neatly as possible within the roofscape.

It can also suit buyers who want a high-output medium-format module but do not need the lighter Pure finish or the more open Style presentation. In that sense, the 450Wp Black version is often the most straightforward recommendation when the requirement is simply strong performance in a dark-finished premium module.

Key features and practical benefits

• 450Wp nominal output with 22.5% module efficiency.
• 108 monocrystalline bifacial high-power TOPCon half-cut cells.
• Framed glass-glass construction with black aluminium frame.
• Black printed rear glass for a darker roof-facing appearance.
• IP68 protection and 1,500V maximum system voltage.
• Pressure load up to 8,100 Pa and suction load up to 2,800 Pa.
• 30 year product warranty and 30 year performance warranty on 90% of nominal power.

The key practical benefit is that this exact panel balances appearance and output very effectively. At 450Wp, it delivers more power than the AM 4.5 425Wp family while keeping a manageable module footprint. At the same time, the black frame and black printed rear glass give the panel a darker and more integrated roofline appearance that many domestic customers actively want.

The glass-glass build also carries weight in real buying decisions. Buyers comparing premium panels often want a module that is clearly built for long service life, not just headline wattage. The M 5.0 Black 450Wp gives them that case through Solarwatt’s published construction, mechanical ratings, and 30 year warranty cover.

Technical details that matter in practice

Solarwatt’s M 5.0 Black technical data lists the 450Wp class at 33.2V nominal voltage, 13.5A nominal current, 39.8V open circuit voltage, 14.0A short circuit current, and 22.5% module efficiency. The module uses 108 bifacial monocrystalline high-power TOPCon cells with 182 x 94mm cell dimensions. Overall module size is 1,762 x 1,134 x 35mm and the weight is 24.8kg.

The panel is built as a framed glass-glass laminate with anti-reflective tempered glass at the front, POE encapsulation, and tempered rear glass partially printed in black between the cells. The connection specification includes 2 x 1.2m, 4 mm² leads with Stäubli Electrical MC4-Evo 2 connectors and 3 bypass diodes. Maximum system voltage is 1,500V and the protection rating is IP68.

Mechanical and fire performance are significant published advantages. Solarwatt lists pressure load up to 8,100 Pa with test load to 12,150 Pa and suction load up to 2,800 Pa with test load to 4,200 Pa. The panel is protection class II according to IEC 61140. Fire performance is listed as fire class A according to IEC 61730 and UL 790, B-s1, d0 according to EN 13501-1, and BROOF (t1) and BROOF (t2) according to EN 13501-5. Those are meaningful specification details for projects where resilience and compliance language matter alongside output.

Installation and fitment considerations

Panel vision M 5.0 Black 450Wp remains practical to install because it keeps the family’s medium-format footprint and a familiar framed construction. The 35mm frame depth fits normal mounting hardware for framed modules, and the cable and connector setup aligns with established PV installation practice. That makes the module easier to specify than a much larger commercial-format alternative on many domestic roofs.

The Black finish matters most on the design side rather than in installation method. It is the variant that will usually look most coherent on darker roof surfaces and on projects where visual integration is a major part of the sales conversation. Installers and designers can therefore use the same core platform while giving customers a distinctly darker finished array.

The stronger M 5.0 load figures are also useful in site assessment. They do not replace the need for correct structural design, but they help support the case for the module on more exposed or mechanically demanding installations.

Why this exact variant may be the right choice

The M 5.0 Black 450Wp is arguably the most balanced dark-finish option in the current M 5.0 range. It offers more output than the 445Wp Style version and a darker presentation than the 455Wp Pure version, while still staying within the same premium glass-glass family. For many customers, that makes it the most natural recommendation because it gives a clear roofline benefit and a strong power class without asking them to choose the highest or lowest wattage step.

Compared with smaller AM 4.5 black-finish modules, it brings a step up in output and stronger published mechanical ratings. Compared with larger XL modules, it remains easier to handle on tighter domestic roof layouts. That middle-ground strength is exactly what makes the 450Wp Black panel commercially useful.
