What the Solarwatt Panel vision M 5.0 Pure 455Wp is

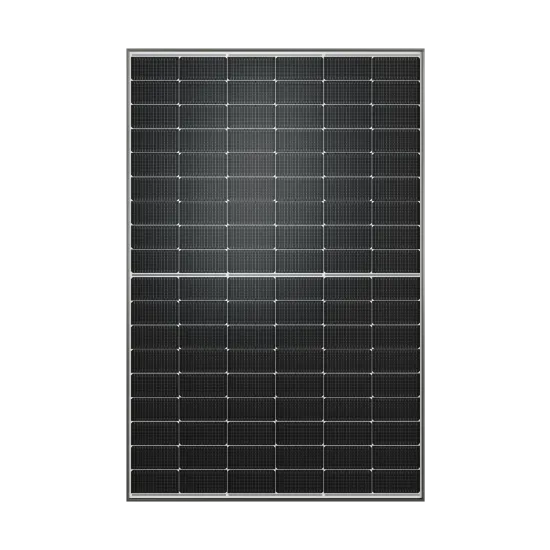

Solarwatt Panel vision M 5.0 Pure 455Wp is a medium-format framed glass-glass solar panel in Solarwatt’s M 5.0 family. The exact row here refers to the Pure-finish 455Wp variant. That is important because the M 5.0 platform is available in more than one finish and more than one power class. At 455Wp, this specific version sits at the top end of the published M 5.0 output range, and in Pure trim it combines that output with a silver aluminium frame and white printed rear glass.

For a buyer, that means the panel is aimed at projects that want high output per module but do not want the darker look of a black-finished panel. It is especially useful where the system designer wants to maximise wattage without moving into a bigger module family, and where the customer still cares about how the finished array looks on the building.

Who it suits

Panel vision M 5.0 Pure 455Wp suits residential and mixed-use roof projects that need strong output from a medium-format panel while keeping a lighter visual finish. It is well suited to homes where the roofline, tile colour, or architecture make silver framing and white printed rear glass feel more appropriate than black. It also suits buyers who want a premium glass-glass panel with stronger mechanical ratings than the AM 4.5 range, but who do not need a larger XL-format module.

Installers may also prefer it where the roof layout supports a medium-format module but the system brief still pushes towards maximising output per panel. In that context, the 455Wp rating is meaningful because it helps increase system capacity without changing module footprint class.

Key features and practical benefits

• 455Wp nominal output with 22.8% module efficiency.
• 108 monocrystalline bifacial high-power TOPCon half-cut cells.
• Glass-glass laminate construction with silver aluminium frame.
• White printed rear glass in the Pure variant.
• IP68 protection and 1,500V maximum system voltage.
• Pressure load up to 8,100 Pa and suction load up to 2,800 Pa.
• 30 year product warranty and 30 year performance warranty on 90% of nominal power.

The most important advantage is output density in a manageable module size. At 455Wp, this version sits above the AM 4.5 425Wp products while staying in a residential-friendly footprint. That can help system designers extract more capacity from the available roof area without moving to a bulkier panel family that may be less convenient on domestic structures.

The Pure finish is also commercially useful rather than merely descriptive. Buyers who want a lighter visual treatment often end up choosing lower-performing or older-format panels to get that effect. Panel vision M 5.0 Pure 455Wp avoids that compromise by pairing a lighter finish with Solarwatt’s current bifacial TOPCon glass-glass platform.

Technical details that matter in practice

Solarwatt’s M 5.0 technical data lists the 455Wp class at 33.4V nominal voltage, 13.6A nominal current, 40.0V open circuit voltage, 14.1A short circuit current, and 22.8% module efficiency. The module uses 108 monocrystalline bifacial high-power TOPCon cells with 182 x 94mm cell dimensions. Overall size is 1,762 x 1,134 x 35mm and weight is 24.8kg.

The construction uses tempered anti-reflective solar glass at the front, POE encapsulation, and tempered rear glass with the spaces between the cells printed in white for the Pure finish. Connection details are 2 x 1.2m, 4 mm² cables with Stäubli Electrical MC4-Evo 2 connectors and 3 bypass diodes. Maximum system voltage is 1,500V and the module is IP68 rated.

Mechanical and safety specifications are a major part of the M 5.0 story. Solarwatt publishes pressure load up to 8,100 Pa with test load to 12,150 Pa and suction load up to 2,800 Pa with test load to 4,200 Pa. The panel is class II according to IEC 61140. Fire performance is listed as fire class A according to IEC 61730 and UL 790, plus B-s1, d0 according to EN 13501-1 and BROOF (t1) and BROOF (t2) according to EN 13501-5. Those figures help explain why the M 5.0 family is positioned as a premium long-life module rather than only a higher-wattage cosmetic refresh.

Installation and fitment considerations

Panel vision M 5.0 Pure 455Wp remains installer-friendly because the module format is still manageable on many residential and mixed-use roofs. The frame thickness is 35mm, which fits common framed-panel mounting hardware designed for similar profiles. The connector format and cable length align with normal PV installation practice, and the medium module size can be easier to handle than larger XL products when roof geometry is tighter or more interrupted.

The stronger mechanical ratings are useful in real design work because they give more confidence on exposed sites, demanding roof zones, and projects where structural resilience is part of the buying conversation. That does not remove the need for proper structural design, but it does make the M 5.0 family more attractive where the project brief is asking for more than baseline domestic panel performance.

The Pure finish has an obvious fitment implication as well. It is the M 5.0 variant to consider when the customer wants the strongest published wattage in the family but prefers a silver-framed, lighter-looking module instead of an all-dark presentation.

Why this exact variant may be the right choice

The exact value of the M 5.0 Pure 455Wp lies in the combination of output, format, and finish. It is the highest-output Pure-finish module in the current M 5.0 data and therefore the most logical option for customers who want maximum power in this specific visual style. Compared with a 425Wp AM 4.5 Pure module, it gives higher output and stronger published load ratings. Compared with the M 5.0 Black version, it changes the aesthetic rather than the core platform.

For many projects, that makes it easier to justify than a purely cosmetic variant. The buyer is not just choosing a different colour. They are choosing the highest-output Pure version in a family with a more demanding structural and performance profile than the smaller AM 4.5 platform.
