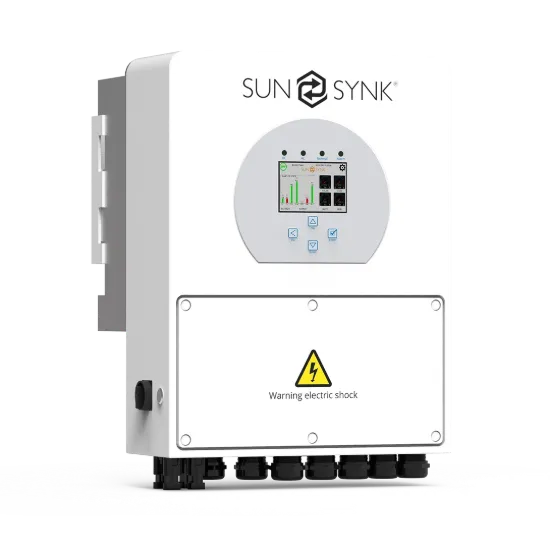

What the Sunsynk MAX ECCO 16kW is

The Sunsynk MAX ECCO 16kW Single Phase Hybrid Inverter is a high-output hybrid inverter for larger single-phase solar and storage systems. In practical terms, it sits above the smaller domestic Sunsynk ECCO models and is designed for properties that need more AC output, more PV design flexibility and stronger battery support than a typical family home system. It combines solar input, battery charging and discharging, grid interaction and off-grid capability in one inverter platform.

That matters because some single-phase sites have outgrown the assumptions behind smaller residential inverters. Large homes with heat pumps, EV charging, workshops, annexes or heavy evening consumption need an inverter that can manage substantial load without compromising the battery side or the PV side of the design. The MAX ECCO 16kW is aimed squarely at that requirement.

Who it suits

This inverter suits large single-phase homes, rural properties, workshops, plant rooms and small commercial or mixed-use sites that still operate on a single-phase supply but need much more system capacity than standard domestic models offer. It is especially relevant where the owner wants a serious hybrid system rather than a grid-tied inverter with limited storage ambition.

It also suits retrofit projects. Sunsynk’s official spec sheet states that the inverter can DC and AC couple to retrofit existing solar systems. For buyers who already have PV on site and want to add hybrid control and low-voltage battery storage, that is a meaningful advantage.

Verified electrical and system features

Sunsynk’s official 16kW spec sheet identifies the key variant facts that make this model different from smaller siblings:

• 16kW single-phase hybrid inverter
• 3 MPPTs with a maximum of 2 strings per MPPT
• 48V low-voltage battery architecture with transformer isolation design
• Compatible with lithium-ion or lead-acid batteries
• 97.6% maximum efficiency
• 100A AC output
• Up to 200A AC passthrough
• Support for up to 16 units in parallel
• Support for storing energy from a diesel generator
• IP65 protection degree
• Micro-grid capable

Those points show why the inverter is a genuine step up rather than just a higher-number variant. The three-MPPT layout alone changes the kind of roof design it can support. On a more complex property, that gives the installer more freedom to separate roof aspects and maintain better harvest across the day.

Why the 3 MPPT layout matters

For large roofs, roof splits and mixed orientations, the number of MPPTs is not a minor detail. A three-MPPT inverter gives the designer more freedom to separate strings and reduce the compromises that often appear when multiple roof sections are forced onto too few trackers. On a large single-phase property, that can be the difference between a neat, efficient system design and one that carries avoidable mismatch losses.

Sunsynk also states a maximum of two strings per MPP tracker. That gives the installer more flexibility on array layout and helps the inverter suit larger PV capacities without becoming awkward to design around.

Low-voltage battery logic and hybrid control

The MAX ECCO 16kW uses a 48V low-voltage battery platform. For many buyers, that is one of the most important decisions in the whole system. Low-voltage battery systems remain very relevant for larger domestic and light commercial storage because they can be easier to integrate in certain applications and align with a wide range of established battery products. Sunsynk also confirms compatibility with both lithium-ion and lead-acid batteries, which broadens the system options.

The official spec sheet also lists six periods for battery charging and discharging. That matters in real use because it supports structured battery behaviour across the day. A property can charge from solar at one point, preserve stored energy for a later demand window, or use tariff-driven charging logic where the wider installation is configured to take advantage of cheaper electricity periods.

Generator support, micro-grid use and backup thinking

Sunsynk states that the inverter supports storing energy from a diesel generator and supports a single-phase pure off-grid application. It is also listed as micro-grid capable. Those are important features for sites where the grid is not always the whole answer. Rural properties, resilience-focused homes and technically demanding installations often want generator support or stronger island-mode capability as part of the design brief.

That does not mean every installation will use those functions from day one. It does mean the inverter is better suited to projects where resilience, backup and site autonomy are part of the long-term plan.

Installation and day-to-day usability

Sunsynk lists a colourful touch LCD and IP65 protection degree. For installers and owners, that means the unit is intended to be easier to commission and monitor locally than a very basic screenless product. The IP65 enclosure also supports more flexible placement in plant rooms, garages and sheltered external positions where the manufacturer supports that rating.

The spec sheet also lists 100A AC output and up to 200A AC passthrough. Those figures help explain the intended application. This is not a light-duty hybrid inverter. It is aimed at substantial single-phase load contexts where stronger AC handling is essential.

Parallel expansion and future-proofing

Sunsynk’s official 16kW sheet states support for up to 16 units in parallel. Even if many buyers will never use that full limit, it tells you a lot about the intent of the product. The inverter is designed for projects that may expand, for sites that need system redundancy, or for larger installations where staged build-out is part of the commercial logic.

That gives specifiers a useful planning benefit. A property can begin with one inverter and still stay within a product family designed for much larger aggregated systems.

Why this variant may be the right choice

The MAX ECCO 16kW is the right Sunsynk choice when the site must stay single phase but the electrical demand is well beyond the level where 3.6kW, 5.5kW or 8.8kW units feel comfortable. It is especially well suited to homes with large loads, strong battery ambition, generator interest or complex roofs that benefit from three MPPTs. It also makes sense on retrofit sites because Sunsynk confirms AC and DC coupling for existing solar systems.

For smaller single-phase systems, the approved sibling products are the Sunsynk ECCO 3.6kW, Sunsynk ECCO 5.5kW and Sunsynk ECCO 8.8kW. Where the site needs the top single-phase ECCO option, the 16kW model is the clear step.
